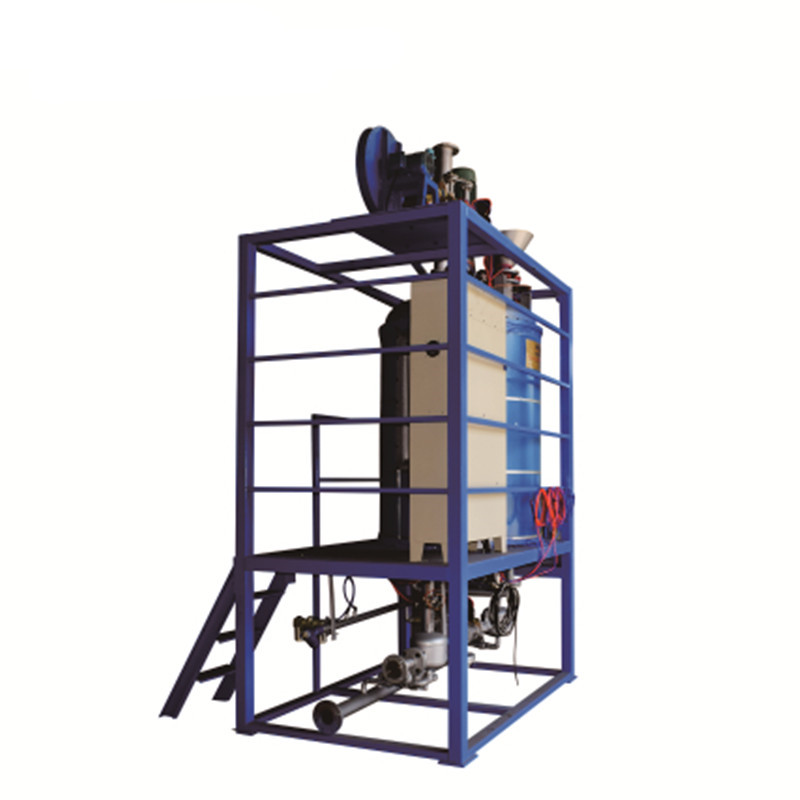

Working principle of the batch type, to expand a fixed mass of raw material in a fixed volume which enables to reach easily desired density. Filling to the vessel is done by gravity.
Expansion chamber made of AISI 304 stainless steel, cylindrical shape.
Agitator and accessories made of AISI 304 stainless steel, speed control via drive. With the adjustable speed in different steaming phases, enables processing of different materials.
Discharge door located on the floor of the vessel, to empty the chamber fast.

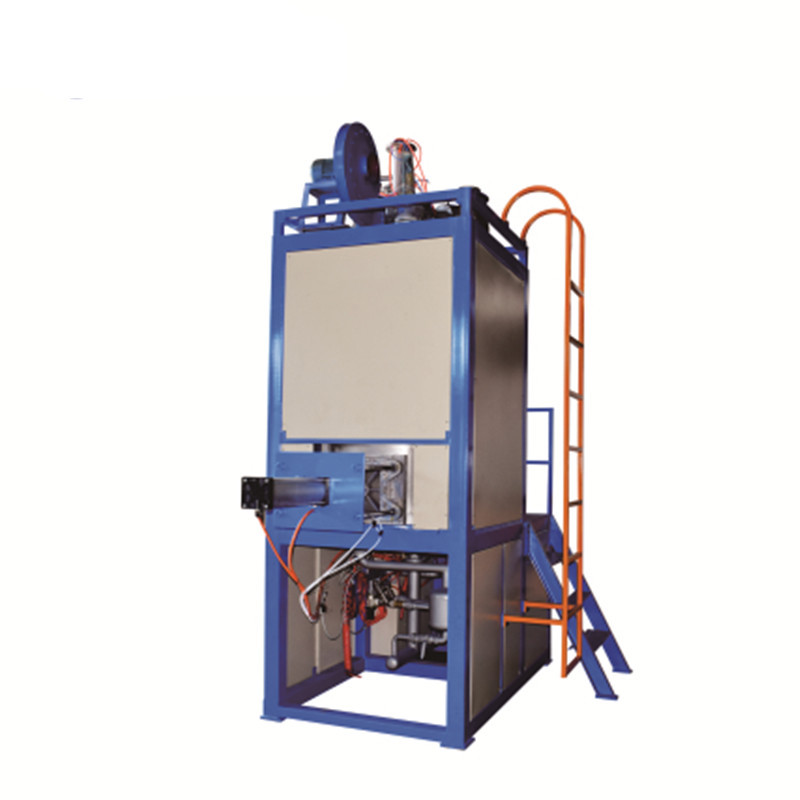

Fluidized bed dryer, inside floor parts made of 304 stainless steel, where the expanded material going out from the expansion chamber to dry the beads. The unit is equipped with a steam-air heat exchanger inside, which avoid the beads from thermal shock.
Material Transport unit, has a rotary valve system, to send the material to the silos.
Machine has a built-in silo control system, with the rigth hardware you can operate this part. Pre-expanded beads from the pre-expander conveyed to the storage silos for 1st and 2 nd expansion stages
After the pre-expansion, you can select the silo from the display, where you want to send the eapanded material. The operator can select several silos at the same time with a priority.
The system follows the selection after the order finishes the machine stops as well. For 2nd expansion, same selection steps are possible. From all the silos, you can make 2nd expansion process.
This conveying system named silo top distribution and all the operation controlled via pre-expander panel.
High Density processing: The air and steam adjustment can be done automatically, in quantity and temperature during all expansion stages. This unit helps to expand densities over 30 kg/m³ till 50 kg/m³. To be on the safe side, densities over 30 kg/m³ should be expand at lower volumes . To do that the levels sensors must be adjusted correctly.
