EPS Raw Material for Styrofoam EPS Machine

Light weight, waterproof, thermal insulation, impact resistance, chemical resistance, plasticity, environmental protection, sound absorption, flame retardant

EPS Raw Material for Styrofoam EPS Machine
EPS Raw Material for Styrofoam EPS Machine
EPS Raw Material for Styrofoam EPS Machine
EPS Raw Material for Styrofoam EPS Machine
EPS Raw Material for Styrofoam EPS Machine

01How do we classfiy EPS Material?

Certification ISO9001/CE
Appearance Corlorless Semi-transparent crystalline beads
Main Component 92%~96% polystyrene
Pentane 5%~7%

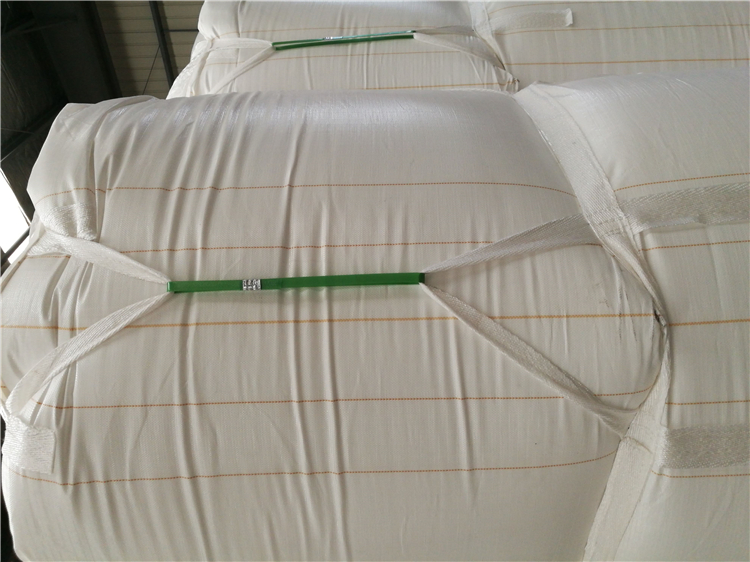

Packaging Details Flecon bag\paper bag for Expandable
Polystyrene 25kg/paper bag, 680bags, 17Tons/20ft Container
850kg/ bulk bag, 20bags, 17Tons/20ft Container
800KG/bulk bag, 20bags, 16Tons/20ft Container
Port Shanghai,Ningbo

Recommended Processing Conditions Material Selection Select the bead diameter as per the required density of block. Low density(10-13g/l) requires C-102, C-103 or C-104. When required density is in the range of 12-16g/l, the required grade will be C-104 or C-105. When density is 16-24g/l, the required grade will be C-104, C-105 or C-106. With higher density, over 25g/l, the requirement is C-106, C-107.Pre-expansion Steam pressure: 0.2Mpa-0.4Mpa Pre-expansion temperature: 96-106ºC Maturing time: 4-10 hours interval between two pre-expansions. The density in first pre-expansion is usually 1.5-1.6 time that of the second pre-expansion. Block Molding Packaging Steam Pressure of Stationary Mould: 0.8-1.2kgf/cm² Steam Pressure of Moving Mould: 0.8-1.2kgf/cm² Block Main Heatingf: 0.55-0.80 kgf/cm² Cooling Time: around 300-800 seconds, related to density of block and property or machinery.

01FEATURES

EPS(Expandable Polystyrene) is a lightweight, rigid, plastic foam insulation material produced from solid particles of polystyrene. Expandsion is achieved by virtue of small amounts of pentane gas dissolved into the polystyrene base material during production.The gas expands under the action of heat, applied as steam, to form perfectly clesed cells of EPS.

Storage standard EPS contains volatile and combustible composition and should therefore be kept far away from any source of ignition, perferable in a cool, dry and well-ventilated storeroom below 25 ℃ out of direct sunlight.







01More About Us

01Certificate

01Packing & Delivery



Packing Weight/KG 20’Fcl Container 40’Fcl Container
Paper Bag (Laminated Kraft Paper) 25 17.00MT 25.5MT
Flecon Bag (Super Sack) 850 17.00MT 25.5MT
